BMW R 1150 R [2000-2006] - Digital Instrument with 80-mm Mount

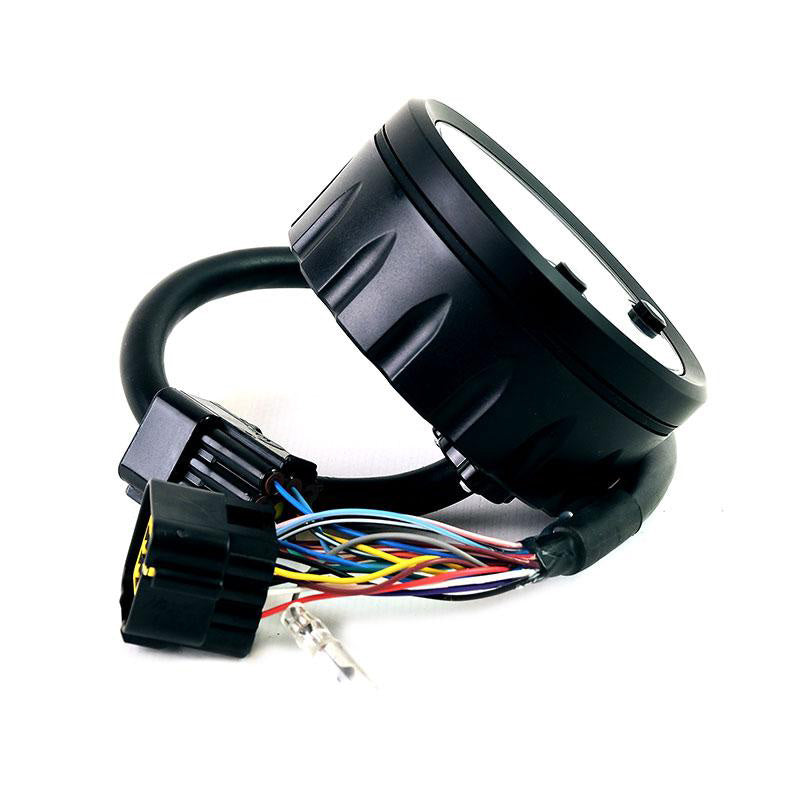

Comprehensive 80-mm digital instrument with installation kit

This digital instrument replaces the original instrument panel and combines speed, engine speed, temperature, gear and riding data in a compact display. The kit contains the components intended for installation, including mounts, wiring, temperature sensor and instructions.

Display and operation

• Black housing with black bezel and 80 mm diameter
• Analog speed display with needle up to 399,9 km/h
• Digital display with black background and white digits for excellent readability, even in sunlight
• Digital engine speed display up to 19.900 rpm
• Gear indicator, fuel gauge, clock and voltmeter
• Temperature display with storage of the maximum temperature reached
• Bar graph for oil or water temperature with overheating warning
• Average and maximum speed display
• Riding time and hour meter
• Six LED lights and six additional LCD indicators

Riding data and adjustment options

• Three trip meters and one partial odometer for the distance ridden on reserve
• Adjustable total mileage
• Universally adjustable wheel circumference from 1 to 3999 mm
• Top speed display selectable with or without decimal places
• Adjustable fuel tank resistance range from 0 to 990 Ohm or can be disabled
• Battery voltage with setting from 11,0 to 15,0 Volt
• Reminder function based on kilometers or operating hours
• Scroll interval for the second display line from 1 to 20 seconds or can be disabled
• Backlighting for the dial and LCD displays with five brightness levels

Gear and shift indicator

The gear indicator is calculated from engine speed and road speed and can be switched off. The shift LED integrated into the dial lights up red as soon as the set value is exceeded. The indicators for side stand warning, gear engaged, neutral and reverse gear for quad or ATV can also be configured.

Construction and certification

• Waterproof to IP67
• Anti-vibration structure and interference resistance
• Tested with 8G vibration and 100G shock
• E-certified

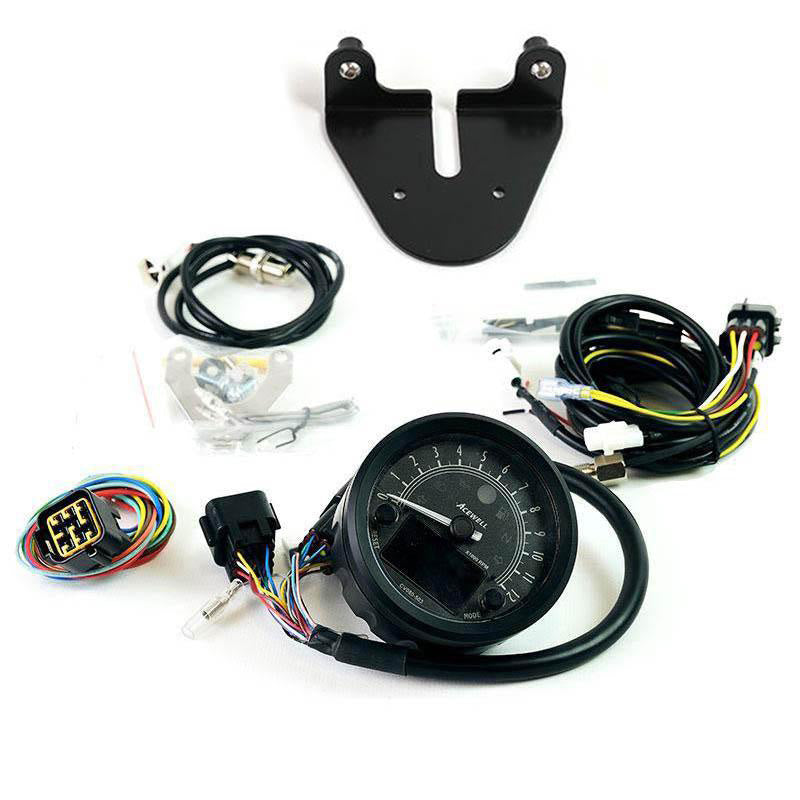

Scope of delivery

• Digital instrument with housing and black 80-mm bezel
• Temperature sensor M10x1,0
• Installation kit with wheel and fork mounting brackets
• Wiring with waterproof connections
• Installation instructions and manual

Installation and compatibility

The instrument is universal and not manufactured exclusively for a specific motorcycle model. Model-specific installation instructions are available in addition to the Acewell instructions. The kit is listed for the BMW R 1150 R from model years 2000 to 2006, among others.

Installation must be carried out by a specialist workshop; online installation support is not available. The odometer can only be set before reaching 30 km. After that, the value is permanently stored and can no longer be changed.

As the product is continuously improved in detail, the images may show an earlier version.
