KTM 350 EXC F [2023-2027] - WÖSSNER forged pistons

WÖSSNER forged pistons for KTM 350 EXC F 2023-2027

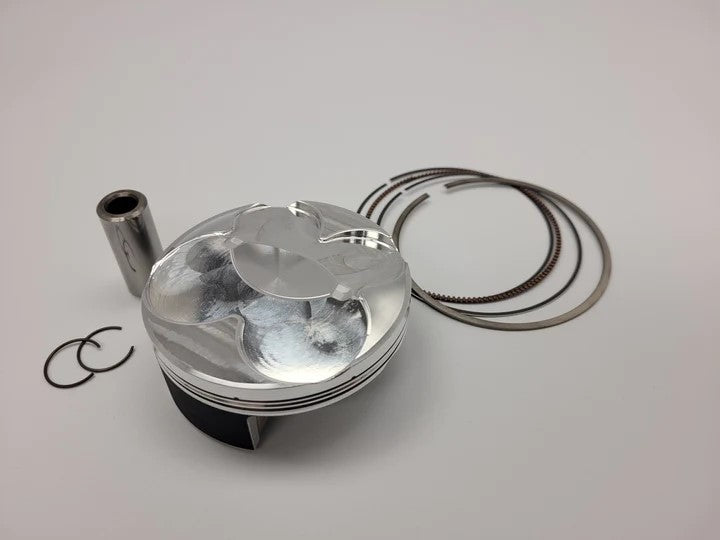

The WÖSSNER forged piston is designed for the KTM 350 EXC F from the 2023-2027 model year range. It is suitable for a 4-stroke engine and offers a precisely defined combination of piston size, bore size and compression ratio for targeted selection for the specified vehicle.

Technical features

• Material: aluminum
• Piston compression: standard
• Diameter Ø: 87.95 mm
• Bore size: 88.00
• Compression ratio: 14.6:1
• Letter oversize: A
• Oversize: STD
• Rings Quantity: Set
• Stroke: 4T

Suitable for

The vehicle assignment applies to the KTM 350 EXC F in the full model year range 2023-2027. This allows the piston to be specifically selected based on model and year of manufacture. The dimensions given also support the comparison with the technical requirements of the engine.

Selection based on engine data

When making your selection, the diameter of 87.95 mm, the bore size of 88.00 and the compression ratio of 14.6:1 should be taken into account in particular. The combination of standard piston compression, oversize letter A and STD design describes the technical specification of this forged piston. The version with a ring set is defined by the statement “Rings Quantity: Set”.
