Mbk Thunder 125 [2001-2002] - Race cast piston

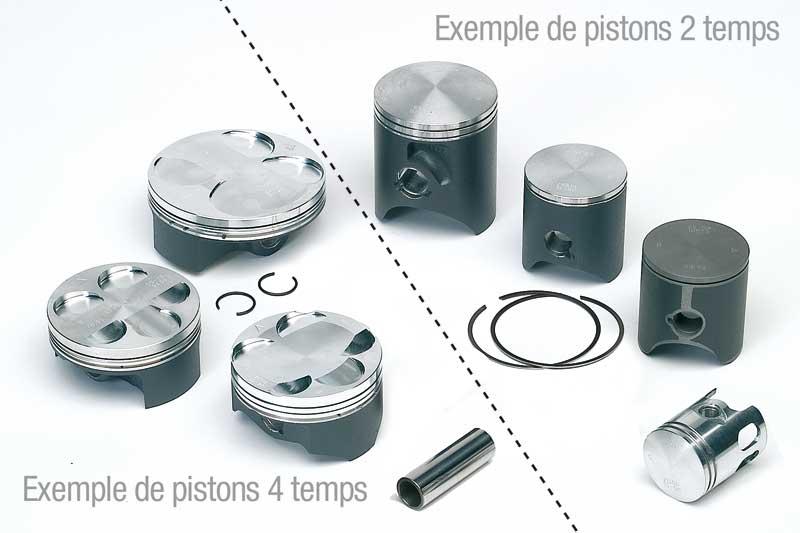

VERTEX Race cast piston for MBK Thunder 125

The VERTEX Race cast piston is designed for the upper engine area of the MBK Thunder 125 from the entire 2001-2002 model year range. Its technical dimensions support a targeted selection when repairing the 4-stroke engine.

Execution and function

The piston is made of aluminum and is designed as a cast piston. Piston compression is standard. The piston diameter Ø 53.92 mm, the bore diameter 53.95 mm and the oversize +0.025 are available for the right adjustment.

• Brand: VERTEX
• Piston Type: Cast
• Material: aluminum
• Piston compression: standard
• Diameter Ø: 53.92 mm
• Letter oversize: 025
• Oversize: +0.025
• Bore diameter: 53.95mm
• Rings Quantity: Set
• Stroke: 4T

Vehicle assignment

The VERTEX Race cast piston is assigned to the MBK Thunder 125, built in 2001-2002. Before selection, the specified diameter, oversize and bore diameter should be compared with the requirements of the engine.

Technical selection

The marking 025 and the oversize +0.025 version make it easier to assign them within the intended selection of sizes. The piston ring set is specified as a set version and supplements the defined piston specification for this 4-stroke vehicle.
