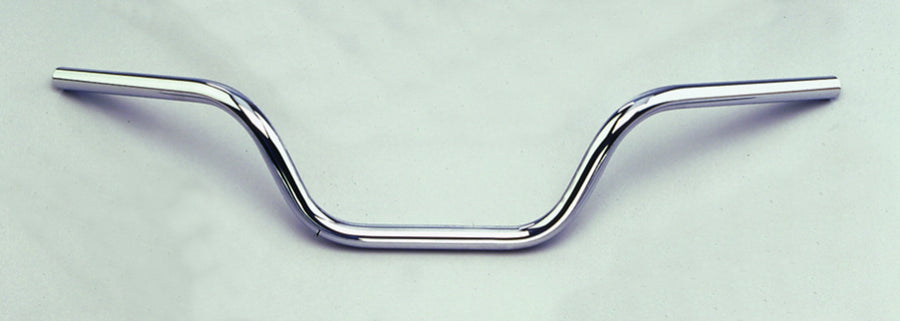

Motorcycle driver Ø 22 mm (7/8 ") - Tour -steering 765 mm wide

Tour handlebars 765 mm wide

Motorcycle driver with a diameter of 22 mm (7/8 inches).

Description

The tour guide from Fehling, model Ø 22 mm (7/8 "), is characterized by its width of 765 mm and is suitable for different motorcycle models, whereby the specific years of construction are not specified.

• Brand: False
• Model: Ø 22 mm (7/8 ")
• Article: Tour handlebars 765 mm wide
• Years of construction: K.A.

The technical dimensions, measured in the case of vertically standing handlebars, vary depending on the assembly position and can therefore deviate. Here are some of the important dimensions:

• Width: 765 mm
• Height at the end of the external bend: 145 mm
• Depth back: 175 mm
• Height at the end of the end of the handle: 115 mm
• Measured at the intersection of the pipe outer edges: 245 mm

In addition to the fixed dimensions, there are also variable dimensions that can vary depending on the cultivation:

• Height: 145 mm
• Depth back (pullback): 135 mm
• Maximum grip length: 200 mm
• Maximum clamping width: 125 mm

These dimensions offer a detailed idea of ​​the size and shape of the handlebar, which is important when choosing and assembly.
