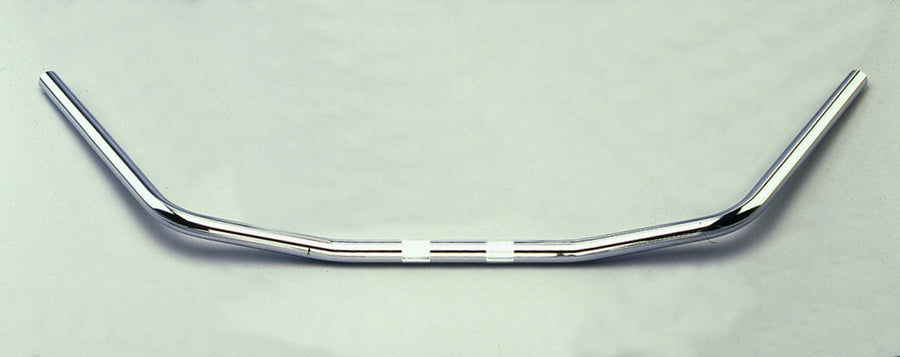

Motorcycle driver Ø 25 - handlebar for chopper and cruiser 1010 mm wide

Product description: handlebar for chopper and cruiser

The motorcycle driver from Fehling, model Ø 25, is specially designed for chopper and cruiser and offers a width of 1010 mm. This handlebar is characterized by a notch that makes it easier to lay electrical cables.

Technical details

• Width: 1010 mm - total width of the handlebar
• Height at the end of the external bend: 70 mm
• Depth back: 290 mm - indicates the distance from the assembly area to the end of the handlebar
• Height at the end of the end of the handle: 90 mm
• Measured at the intersection of the pipe outer edges: 275 mm

Dimensions in attachment

• Height: 60 mm - distance from the assembly area to the highest point of the handlebar
• Depth back (pullback): 270 mm - distance from the assembly point to the rear end of the handlebar

Further dimensions

• Maximum grip length: 280 mm
• Maximum clamping width: 251 mm
• Width of the knurling (outside): 120/60 mm

The Fehling driver offers a robust construction and is suitable for different construction years of chopper and cruisers, although specific years of construction are not specified. The careful design enables easy installation and improved handling of the machine.
