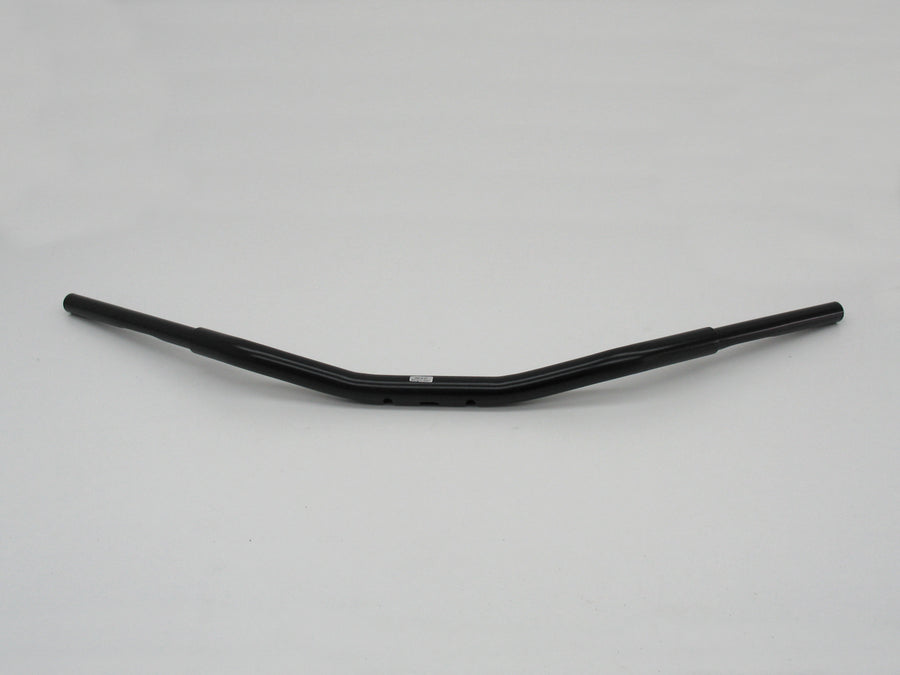

Motorcycle driver Ø 31 - handlebar for chopper and cruiser 995 mm wide, black

Product description: handlebar for chopper and cruiser

This motorcycle driver of the Fehling brand, model Ø 31, is specially designed for chopper and cruiser. The handlebar is 995 mm wide and available in black. The design of the handlebar enables optimal handling and control of the machine.

Technical details

• Diameter of the handlebar: 31.75 mm (1 1/4 inches)
• Diameter of the handle: 25.4 mm (1 inch)
• Care for electrical cables: Yes, the cable routing makes it easier
• Cable guidance: 3-hole system for cleaning the cables inside the handlebar

Measure

The dimensions of the handlebar vary depending on the assembly position and may differ from the base dimensions. Here are the most important dimensions with vertical assembly:

• Width: 995 mm
• Height at the end of the external bend: 65 mm
• Depth back: 200 mm
• Height at the end of the end of the handle: 115 mm
• Dimensions at the intersection of the pipe outer edges: 180 mm

Other relevant dimensions that can change depending on the extension include the height and depth to the rear (pullback), which are 65 mm and 180 mm each. The maximum handle length is 200 mm and the maximum clamping width 145 mm. It should be noted that the handlebar has no knurling.

The exact dimensions and adaptability of the handlebar enable control and comfort to improve while driving by tailored to the driver's individual needs.
